General Information

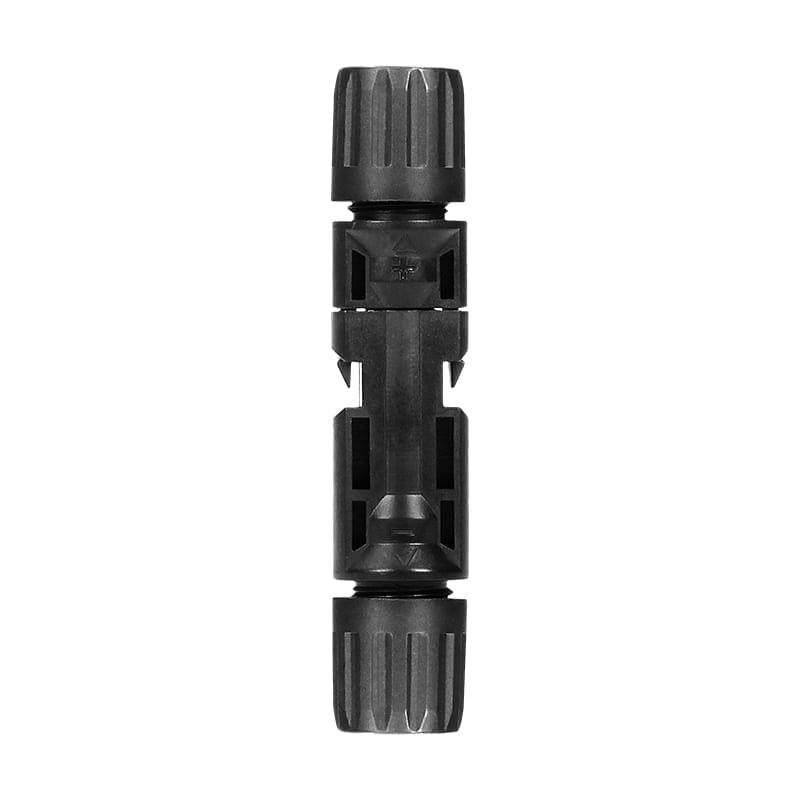

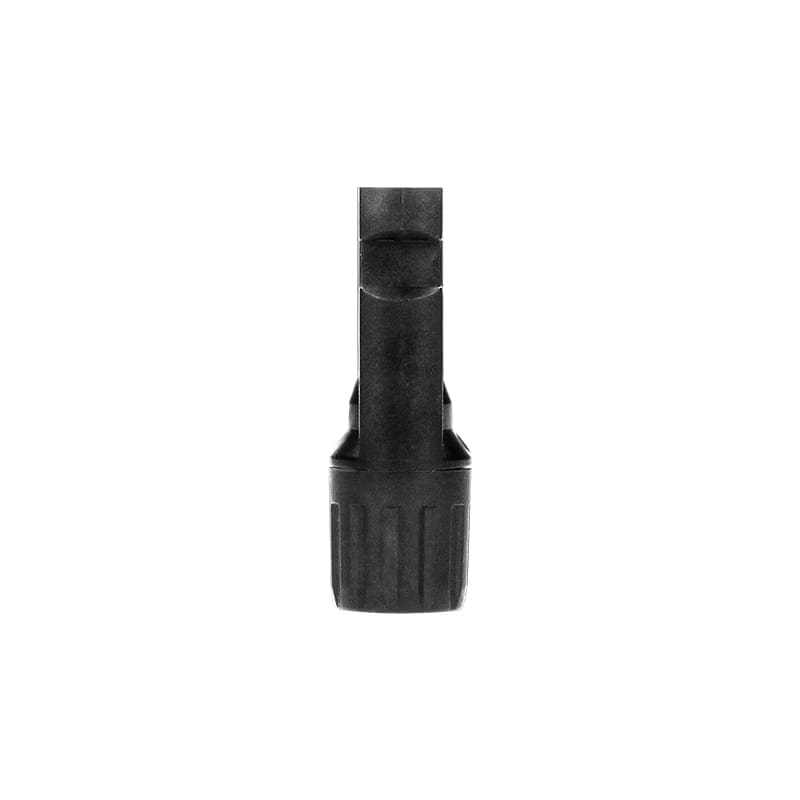

Connector type: MC4
Current: 30A
Contacts material: Copper (100%) Tinned
Power supply: 1000V DC
Number of wires: 1
Protection rating – IP: 67
UV radiation resistance: yes
Case flammability standard UL94: V0
Wire cross-section: 1,5-6mm²
Type of connection: clamp
Weight: 26g
Case material: PC/PPO
Contact resistance: 0.20mOhm
Insulation voltage: 6kV
Max. contact temperature: 105°C
