General Information
Degree of protection (IP): 20
Max. load of the LED light source: 300W
Max. load: 1200W
Colour: silver
Nominal voltage: 230V~, 50Hz
Relay output: no
Presence detector: no
Adjustable daylight sensor (LUX): yes
Dimensions of the sensor – width (mm): Ø85mm
Installation: flush mounting
Dimensions of the sensor – height (mm): Ø85mm
Daylight sensor adjustment range (LUX): <3—2000lux
Dimensions of the sensor – depth (mm): 56.70mm
Adjustment of motion detection range (SENS): yes

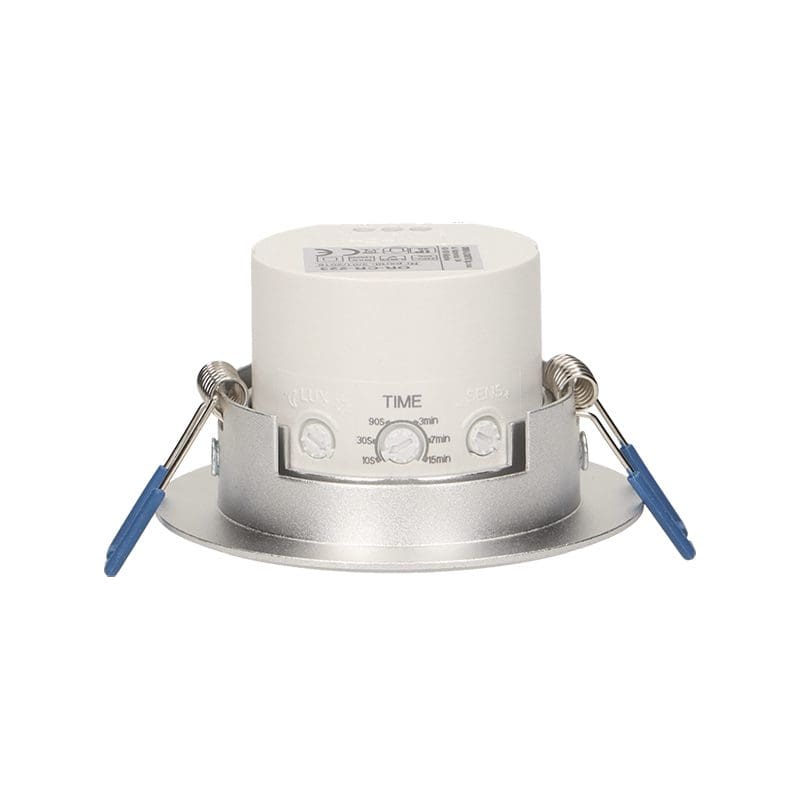

Adjustable time setting (TIME): yes
Lighting time adjustment range (TIME): min.: 10 sek. ± 3 sek., max.: 15min.±2min
Detection range: Ø3-6m
Detection angle: 360°
Type of sensor: Infrared
Dimensions of the mounting hole: Ø63mm
